Issue description

You are running a Linux-based machine with an install of ZFS on Linux. Everything seems to work correctly, but after restarting your machine, the ZFS pool is not visible. You can still import your pool manually using zpool import poolname or zpool import -a.

In my situation, this issue does not occur with Debian 10 on an x86-based machine, but it does occur on a Raspberry Pi 4 running Ubuntu Server 20.04.1 LTS.

Setup:

  • Raspberry Pi 4 (4GB)
  • Ubuntu Server 20.04.1
  • 32GB microSD card for root filesystem
  • 2x 8TB WD Elements external USB 3.0 drives (ZFS mirror)

Potential causes and solutions

When looking this issue up, there were many potential causes and solutions provided:

In my specific scenario, none of these seemed to do the trick.

Investigation

The ZFS pools should be automatically imported on boot by a service named zfs-import-cache.service. The cache file should contain information about the imported pools.

Once you have started your system and don’t see any ZFS pools available, try running systemctl status zfs-import-cache.service or journalctl -u zfs-import-cache.service. This should show you if the automatic import succeeded or not.

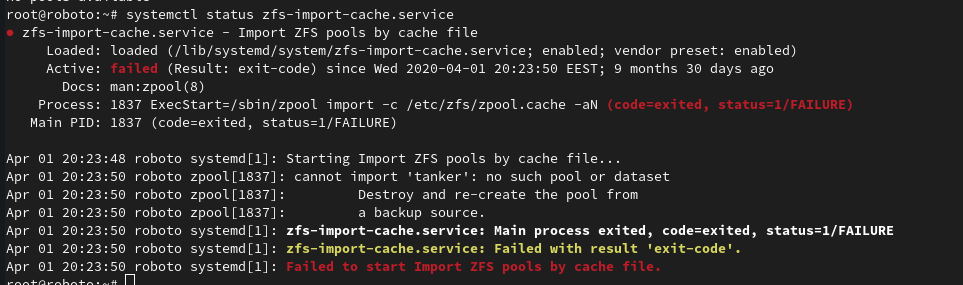

In my case, the failure shows up like this.

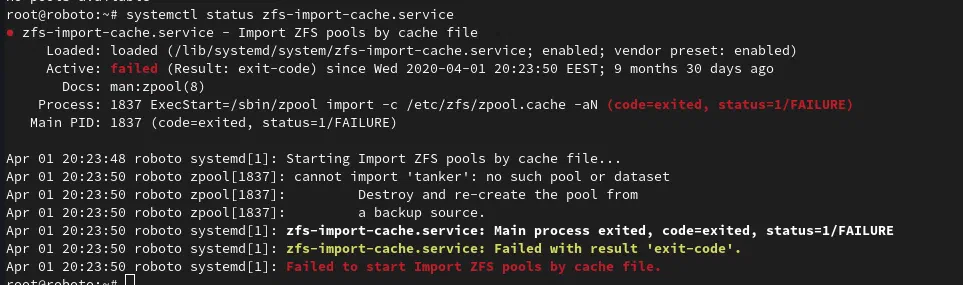

In my case, the failure shows up like this.

The pool tanker is a ZFS mirror that is supported by two 8TB WD Elements external hard drives. They are big, loud and require some time to spin up the platters before you can actually read data off of them. At this point in the investigation, a good friend recommended that I check what disks were recognized by the system at the time when this import service was starting up.

For that, you need to modify the systemd service by running systemctl edit zfs-import-cache.service and put these contents in there:

[Service]
ExecStartPre=/usr/bin/lsblk

This addition will run the lsblk command before the command specified in the systemd service is actually executed. The output of this command will be visible in the service logs. After making this addition, reboot your system and run journalctl -u zfs-import-cache.service again. You should be able to see all the connected drives on the system.

In my case, the system recognized the microSD card and an SSD that was connected over USB, but not the hard drives. This was a very clear indication that the system was not waiting until the drives had spun up before attempting to import the ZFS pool.

Hacky solution

To resolve this issue quickly and move on with more interesting things, you can use the same trick that we used for troubleshooting this issue, but instead of listing the connected hard drives, we can make the systemd service delay its execution by putting a sleep statement in there.

Edit the systemd service again with systemctl edit zfs-import-cache.service and replace the contents with this:

[Service]
ExecStartPre=/usr/bin/sleep 15

This will make the service sleep for 15 seconds before importing the ZFS pool(s). It could be 10, or 30, or whatever value works for you, 15 seconds was chosen here because it is more than enough time for the disks to spin up.

Proper solution (probably)

There are probably better solutions, such as messing around with udev rules or enforcing the delay somewhere else in the ZFS pool import chain of operations, but I have not investigated them at this point. Feel free to contact me with a better solution, and I will update the post accordingly.
